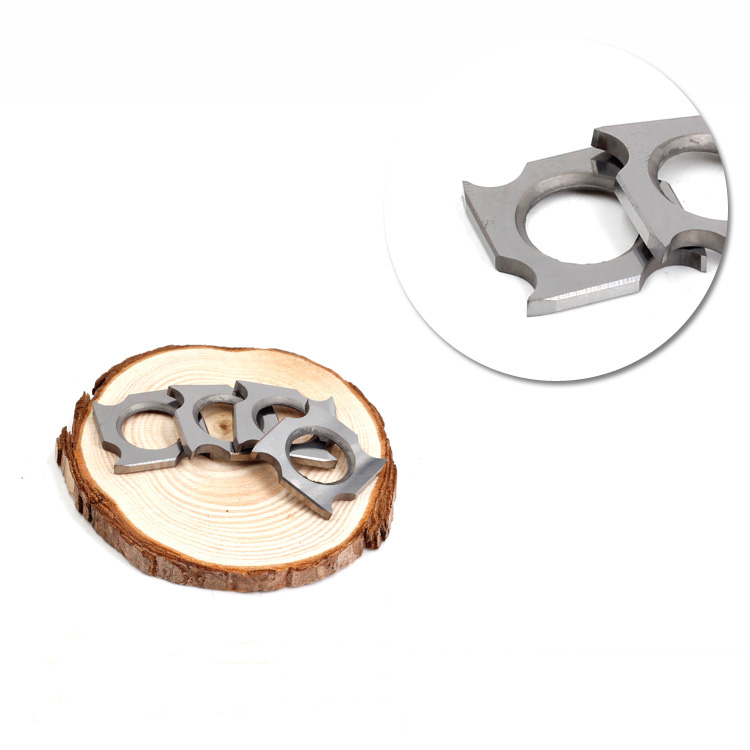

Carbide Insert 18 x 18 x 1.95 for groove shaper cutter

Material: TC
Size: 18x18x1.95/18x18x2.45
MOQ: 10pcs

Quantity:
  • KONETOOL

Carbide Inserts Knives 18 X 18 1.95

Products Description

The solid carbide insert for adjustbale groove cutter which design to produce grooves, plane, shape and doweling. The TC grades available for different material types such as softwood/ hardwood MDF/solid surface and micro-finish for general purpose.


Carbide Insert Knives Property

Grade                 ISO Code               Grain Size               Co                   Hardness             T.R.S.              Application
KT08 K05 0.5 um 4% 94.5 HRA 2800  HDF/MDF
KT10U K05-K10 0.6 um 6% 93.2 HRA 3000 Solid Wood/MDF
KT30U K20 0.8 um 10% 92.0 HRA 3800 Wood
KT6X K10 1.0 um 6% 91.5 HRA 3000 Wood

More size...

1818 woodworking inserts

Carbide Insert Knives Specification

L(mm)  W  (mm)            T   (mm)              D                   Cutting Edge
14 14 2.0 8.4 4
18 18 1.95 10.3 4
18 18 2.45 10.3 4
18 18 2.95 10.3 4
18 18 3.7 10.3 4



FAQ:

Q1 What's the MOQ?
10pcs per each size.

Q2 How about the lead time?
There are usual stock of inserts, so the lead time usually can be 2 working days if the one size quantity is less then 3000pcs.

Q3 How are the production capacity?
Our capacity is 150,000-200,000pcs per month.

Q4 How do you control the quality?
We strictly follow system of management system ISO 9001.
100% virgin raw material, from the raw material to finished insert, there must be through 14 production and inspection processes.

Q5 About Surface and cutting edge situation of blade?
All of our blade are Mirror surface, and smooth cutting edge without any gap under100 times microscope, which can keep longer service life.
