Double Flute Tungsten Solid Carbide Straight Groove End Milling Cutter

Material: Solid Carbide
Size: Custom made
MOQ: 10pcs
Availability:
Quantity:

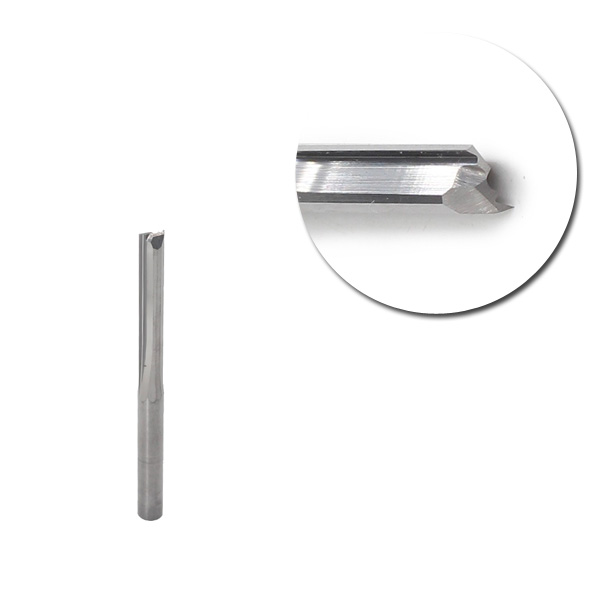

Double Flute Tungsten Solid Carbide Straight Groove End Milling Cutter


Product Description:


For multi-layer board, plywood processing,  this double-fluted straight groove milling cutter is recommended. Cause this double flute milling cutter has good milling and cutting performance to ensure high work efficiency.


Application:


High quality two straight flute carbide cutting tools are excellent at 2D Engraving, Cutting, Milling:

Foam, EVA board, multi-layer board, flower board, fibreboards, melamine boards;

MDF, HDF, and all kinds of composite boards;

Solid wood, hardwood, real wood, organic plates;

PVC, acrylic, double-color board, ABS, and so on.


Features


1.Professional, Very Good strength and intensity, High cleaness &durability, Long service life;

2.Special design, combined hard cutter body and high-class cutting edge,High working efficiency and not easy to break, good value, save money.

3. It has sufficient bending strength and wear resistance, milling grooves, holes and edges, clean, tidy, and no burrs.

4. High strength, anti-bending, anti-breakage, excellent physical properties and long life.

5. Various types, suitable for various needs of milling.


carbide end milling cutter


Product Specification


d (mm)

h (mm)

D (mm)

L (mm)

4

12

4

48

4

17

4

48

4

20

4

48

4

22

4

48

4

25

4

50

4

28

4

55

4

32

4

60

4

42

4

70

5

17

5

50

5

22

5

50

5

25

5

50

5

32

5

60

5

22

5

60

6

12

6

40

6

17

6

45

6

22

6

50

6

25

6

50

6

28

6

55

6

32

6

65

6

42

6

70

6

52

6

80

6

62

6

90

6

72

6

120

8

22

8

50

8

32

8

60

8

42

8

70

8

52

8

80

10

22

10

60

10

32

10

60

10

52

10

80

10

72

10

120

12

82

12

120

12

92

12

120



carbide milling cutter


FAQ:



Q1 What's the MOQ?

10pcs per each size.



Q2 How about the lead time?

There are usual stock of products, so the lead time usually can be 7 working days if the one size quantity is less then 1000pcs.



Q3 How are the production capacity?

Our capacity is 150,000-200,000pcs per month.



Q4 How do you control the quality?

We strictly follow system of management system ISO 9001.

100% virgin raw material, from the raw material to finished products, there must be through 14 production and inspection processes.
