]]> Solid Carbide Roughing Milling Cutter is highly efficient tools used for quickly removing a large amount of material. Konetool’s milling cutters are manufactured on 5-axis CNC lathes and are characterized by high hardness and high wear resistance, providing a long service life and excellent cutting performance. They are suitable for processing various wood materials, such as MDF, multi-layer boards, and hardwoods, etc. Moreover, these milling tools usually have a helical cutting edge, which helps to more effectively discharge chips, reduce resistance during the cutting process, and thereby improve processing efficiency.

Advantages:

  • High efficiency cutting: Suitable for rough cutting of large-sized materials, larger diameters and deeper chip grooves can greatly improve machining efficiency.
  • Reduce fiber tearing: Spiral and serrated cutting can effectively reduce resistance and minimize tearing of wood fibers during processing.
  • Strength improvement: Different coatings can be added to the tool surface according to different processing scenarios to achieve the effect of strengthening the tool edge
  • Reduce load: Compared with other milling cutters of the same size, the rough skin milling cutter can effectively reduce the load on the equipment through segmented and time-sharing cutting.

Applicable Materials:

  • Hardwoods & high-density substrates (oak, ash, hard maple, etc.,hardness ≥5000N): 10mm single-pass cutting depth for 20mm thick walnut solid wood strips.
  • Artificial & composite boards (MDF, particleboard, plywood): Ideal for rough processing of unveneered panels (e.g., custom furniture contour cutting), minimizing stress-induced edge cracking
  • Large-size wood pretreatment: Log rough boardleveling, building timber pre-shaping.

Specification:

D d CL L
8.0mm 8.0mm 50.0mm 100.0mm
10.0mm 10.0mm 50.0mm 100.0mm
10.0mm 10.0mm 70.0mm 120.0mm
12.0mm 12.0mm 50.0mm 100.0mm
12.0mm 12.0mm 70.0mm 120.0mm
12.7mm 12.7mm 50.0mm 100.0mm
12.7mm 12.7mm 70.0mm 120.0mm
12.7mm 12.7mm 80.0mm 120.0mm
12.7mm 12.7mm 80.0mm 120.0mm
16.0mm 16.0mm 50.0mm 100.0mm
16.0mm 16.0mm 80.0mm 130.0mm
16.0mm 16.0mm 50.0mm 165.0mm
16.0mm 20.0mm 50.0mm 165.0mm

Application:

Wood Router                                               Router Table                                 CNC Wood Router

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation





The post Solid Carbide Roughing Milling Cutter appeared first on KoneTool.

]]> Solid Carbide Veining Bits https://www.konetool.com/solid-carbide-veining-bits/ Tue, 22 Jul 2025 07:32:30 +0000 https://www.konetool.com/?post_type=product&p=3795 Our wood Solid Carbide Veining Bits are designed to meet the diverse needs. With a focus on quality, precision, and durability, these bits are the perfect tools for creating intricate and beautiful wood carvings. Material: Solid tungsten carbide. Used on: CNC routing, carving, and milling machines. Shank: 4.0mm,6.0mm. Request a quote for further information, including minimum order

The post Solid Carbide Veining Bits appeared first on KoneTool.

]]> Our wood Solid Carbide Veining Bits are designed to meet the diverse needs. With a focus on quality, precision, and durability, these bits are the perfect tools for creating intricate and beautiful wood carvings.

Capabilities:

  • Enables fine carving, hollowing, and creation of narrow grooves /keyways / decorative lines.
  • Complex edge profiles (ballnose, taper, round nose, V-shaped,custom carving edges) support high-precision intricate carving.

CNC Machining Dynamics:

  • Driven by multi-axis CNC movement with CAM-generated toolpaths
  • Simultaneous or sequential feed in X/Y/Z axes for complex trajectories.

Cutting Parameters:

  • Shallow cutting depth (especially in fine details), often requiring multi-layer passes.
  • High spindle speeds essential for optimal surface finish and tool protection.
  • Slow feed rates ensure precision and prevent tool breakage.

Specification:

V-shaped:

d D r L
3.175mm 0.2mm 30° 30mm
4.0mm 0.3mm 30° 40mm
4.0mm 0.4mm 30° 45mm
6.0mm 0.4mm 30° 45mm
6.0mm 0.4mm 30° 80mm

Ballnose-shaped:

D R r L
4.0mm R0.5mm 15° 45mm
4.0mm R0.5mm 15° 50mm
6.0mm R0.5mm 15° 50mm
6.0mm R0.5mm 15° 60mm
6.0mm R0.5mm 20° 80mm
6.0mm R0.5mm 20° 100mm

Application:

Wood Router                                               Router Table                                 CNC Wood Router

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation

The post Solid Carbide Veining Bits appeared first on KoneTool.

]]> Solid Carbide Compression Cutters https://www.konetool.com/solid-carbide-compression-cutters/ Mon, 21 Jul 2025 09:00:47 +0000 https://www.konetool.com/?post_type=product&p=3779 Konetool's spiral composite router bits for woodworking integrate cutting edge design with advanced manufacturing processes, emerging as the ideal solution to meet modern woodworking demands. Material: Solid tungsten carbide Used on: CNC routing, carving, and milling machines Shank: 3.175mm,2.0mm,4.0mm,5.0mm,6.0mm,8.00mm,10.00mm. Request a quote for further information, including minimum order quantity (MOQ), price, delivery, and more.

The post Solid Carbide Compression Cutters appeared first on KoneTool.

]]> Konetool’s spiral composite router bits for woodworking integrate cutting edge design with advanced manufacturing processes, emerging as the ideal solution to meet modern woodworking demands.

Features:
  • Combining up-cut and down-cut helix features.
  • Control upper/lower surface quality via dual-directional cutting.
  • Minimize tear-out and edge chipping in through-cut operations.
  • Ensure precise mortise-tenon joints and groove profiles in solid wood.

Material Applications:

  • Soft to Medium-Hard Solid Woods Pine, basswood, beech, ash Application: R-corner chamfering (2-5mm radius) on solid wood tabletops Curved edge profiling for furniture components.
  •  Artificial Boards & Veneers Melamine board, MDF, PVC edge banding (0.4-3mm thickness).
  • 25mm particle board edge trimming with 2mm PVC banding. Reduces edge breakage rate to <5% in veneer processing.
  • Plastic Materials PVC foam board (5-20mm), acrylic (≤10mm), ABS Application: 10mm PVC sign bevel engraving with burr-free edges.

Specification:

D d CL L
3.175mm 3.175mm 22.0mm 50.0mm
2.0mm 3.175mm 25.0mm 45.0mm
4.0mm 4.0mm 17.0mm 42.0mm
4.0mm 4.0mm 32.0mm 55.0mm
5.0mm 5.0mm 22.0mm 45.0mm
5.0mm 5.0mm 25.0mm 50.0mm
6.0mm 6.0mm 22.0mm 45.0mm
6.0mm 6.0mm 52.0mm 80.0mm
8.0mm 8.0mm 32.0mm 60.0mm
8.0mm 8.0mm 32.0mm 75.0mm
9.0mm 10.0mm 32.0mm 80.0mm
10.0mm 10.0mm 32.0mm 100.0mm

Application:

Wood Router                                               Router Table                                 CNC Wood Router

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation



The post Solid Carbide Compression Cutters appeared first on KoneTool.

]]> Double-Flute Spiral Milling Cutter https://www.konetool.com/double-flute-spiral-milling-cutter/ Mon, 21 Jul 2025 07:42:03 +0000 https://www.konetool.com/?post_type=product&p=3752 Kone Tool’s Double-Flute Spiral Milling Cutter are high-efficiency tools for woodworking, engineered with advanced design and manufacturing processes. The helical edge design enables drill-like cutting efficiency, while solid carbide construction ensures ultra-sharp edges that effortlessly machine all wood types. Material: Solid tungsten carbide. Used on: CNC routing, carving, and milling machines. Shank: 3.175mm,2.0mm,4.0mm,5.0mm,6.0mm,8.00mm,10.00mm. Request a

The post Double-Flute Spiral Milling Cutter appeared first on KoneTool.

]]> Kone Tool’s Double-Flute Spiral Milling Cutter are high-efficiency tools for woodworking, engineered with advanced design and manufacturing processes. The helical edge design enables drill-like cutting efficiency, while solid carbide construction ensures ultra-sharp edges that effortlessly machine all wood types.

Advantages:

  • Dual-edge design doubles machining efficiency while symmetrically distributing cutting force to reduce equipment load.
  • Achieves excellent surface finish and dimensional precision.
  • Spiral flutes employ “progressive cutting” (helical blade-wood contact line) to minimize chipping.

Material Application Range:

  • Hardwood & High-Density Boards E.g., oak, walnut, multi-layer solid wood panels Helical dual-edge structure balances high cutting resistance in hardwood.
  • Artificial & Composite Boards E.g., plywood, MDF, PVC foam board Spiral blade shear force reduces edge cracking.

Specification:

D d CL L
3.175mm 3.175mm 22.0mm 50.0mm
2.0mm 3.175mm 25.0mm 45.0mm
4.0mm 4.0mm 17.0mm 42.0mm
4.0mm 4.0mm 32.0mm 55.0mm
5.0mm 5.0mm 22.0mm 45.0mm
5.0mm 5.0mm 25.0mm 50.0mm
6.0mm 6.0mm 22.0mm 45.0mm
6.0mm 6.0mm 52.0mm 80.0mm
8.0mm 8.0mm 32.0mm 60.0mm
8.0mm 8.0mm 32.0mm 75.0mm
9.0mm 10.0mm 32.0mm 80.0mm
10.0mm 10.0mm 32.0mm 100.0mm

Application:

Wood Router                                               Router Table                                 CNC Wood Router

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation







The post Double-Flute Spiral Milling Cutter appeared first on KoneTool.

]]> Single-Flute Spiral Milling Cutter https://www.konetool.com/single-flute-spiral-milling-cutter/ Mon, 21 Jul 2025 07:13:29 +0000 https://www.konetool.com/?post_type=product&p=3740 Kone Tool's Single-Flute Spiral Milling Cutter are high-efficiency tools for woodworking, engineered with advanced design and manufacturing processes. The helical edge design enables drill-like cutting efficiency, while solid carbide construction ensures ultra-sharp edges that effortlessly machine all wood types. Material: Solid tungsten carbide Used on: CNC routing, carving, and milling machines Shank: 3.175mm,2.0mm,4.0mm,5.0mm,6.0mm,8.00mm,10.00mm. Request a quote for

The post Single-Flute Spiral Milling Cutter appeared first on KoneTool.

]]> Kone Tool’s Single-Flute Spiral Milling Cutter are high-efficiency tools for woodworking, engineered with advanced design and manufacturing processes. The helical edge design enables drill-like cutting efficiency, while solid carbide construction ensures ultra-sharp edges that effortlessly machine all wood types.

High-Precision Machining Advantages
  • Ideal for high-accuracy fine processing with minimal material removal.
  • Single-edge design ensures excellent chip evacuation and heat dissipation, preferred in sign industry applications.
Cutting Performance
  • Unilateral blade contact concentrates cutting force in one direction, minimizing wood surface tear-out and burrs.
  • Glue-Containing Materials (e.g., Particleboard).
  • Material Compatibility.
  • Soft to Medium-Hard Woods.
  • Pine, basswood, beech.
  • Precise cutting path control prevents fiber tearing.
  • Thin & Fragile Materials.
  • ≤10mm thin wood panels, veneered boards.
  • Non-Wood Materials: Acrylic, ABS plastic.

Specification:

D d CL L
3.175mm 3.175mm 22.0mm 50.0mm
2.0mm 3.175mm 25.0mm 45.0mm
4.0mm 4.0mm 17.0mm 42.0mm
4.0mm 4.0mm 32.0mm 55.0mm
5.0mm 5.0mm 22.0mm 45.0mm
5.0mm 5.0mm 25.0mm 50.0mm
6.0mm 6.0mm 22.0mm 45.0mm
6.0mm 6.0mm 52.0mm 80.0mm
8.0mm 8.0mm 32.0mm 60.0mm
8.0mm 8.0mm 32.0mm 75.0mm
9.0mm 10.0mm 32.0mm 80.0mm
10.0mm 10.0mm 32.0mm 100.0mm

Application:

Wood Router                                               Router Table                                 CNC Wood Router

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation





The post Single-Flute Spiral Milling Cutter appeared first on KoneTool.

]]> PCD Milling Cutter https://www.konetool.com/pcd-milling-cutter/ Thu, 17 Jul 2025 02:11:49 +0000 https://www.konetool.com/?post_type=product&p=3723 In panel processing, improving productivity, precision, and machining results is a constant goal. Our PCD milling cutter, as industry-leading products, use excellent performance and innovative designs to meet diverse needs. Application:Furniture Manufacturing,Millwork and Mouldings,Decorative Woodworking,Machining of Various Wood Materials,Edge Banding. Machine:Homag,SCMI,Weinig,Wadkin,Williams & Hussey,LEADERMAC,etc. Material:PCD Request a quote for further information, including minimum order quantity (MOQ),

The post PCD Milling Cutter appeared first on KoneTool.

]]> In panel processing, improving productivity, precision, and machining results is a constant goal. Our PCD Milling Cutter, as industry-leading products, use excellent performance and innovative designs to meet diverse needs.

Konetool manufactures industrial-quality PCD Milling Cutter of top-brand machines, including Homag,SCMI,Weinig,Wadkin,Williams & Hussey,LEADERMAC,etc.

The following are some features of our PCD Milling Cutter:

  • High Precision: ±0.01 mm, batch mortise depth error ≤0.05 mm, stable dimensions.
  • Ultra-long Life: Over 100 h continuous cutting, fewer tool changes, less downtime.
  • Mirror Finish: Ra ≤0.8 μm, no secondary grinding, ideal for premium veneer or solid wood.
  • High-speed Machining: 3 000–12 000 rpm, line speed 20–30 m/min, far surpassing carbide

We have rich experience in providing woodworking PCD Milling Cutter for furniture factories, woodworking equipment manufacturers, precision tool wholesalers/distributors/traders, and woodworking workshops from various countries. If you’re looking for a reliable PCD Milling Cutter supplier, please feel free to contact us or directly request a quote on this page.

Specification:

Diameter (mm) Height (mm) Inner diameter (mm) Tooth Processing Thickness (mm)
80 20 30 6T 8 – 25
80 20 30 12T 8 – 25
100 30 35 6T 8 – 30
100 30 35 12T 8 – 30
125 30 35 6T 8 – 30
125 30 35 6T 8 – 30
125 30 43 30T 8 – 36
150 30 35 6T 8 – 30
150 30 43 30T 8 – 36

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation.

The post PCD Milling Cutter appeared first on KoneTool.

]]> Pre-Milling Cutter for edgebander https://www.konetool.com/pre-milling-cutter-for-edgebander/ Wed, 16 Jul 2025 09:16:56 +0000 https://www.konetool.com/?post_type=product&p=3715 Kone tool manufacture the edge-banding pre-milling cutters, engineered with professional design and superior performance, serve as the reliable guarantee for high-quality edge banding. Application:Furniture, Wooden flooring&doors, Edge banding machine. Machine:Homag,SCMI,Weinig,Wadkin,Williams & Hussey,LEADERMAC,etc. Material:PCD Request a quote for further information, including minimum order quantity (MOQ), price, delivery, and more.

The post Pre-Milling Cutter for edgebander appeared first on KoneTool.

]]> Pre-milling is the pivotal first step in the edge banding process, directly determining the quality of the final product. Kone tool manufacture the edge-banding pre-milling cutters, engineered with professional design and superior performance, serve as the reliable guarantee for high-quality edge banding.The dual-axis synchronized pre-milling structure removes burrs and smooths uneven surfaces in one pass, creating an ideal base for edge banding. With large helical angle blades and optimized cutting paths, it cuts with less resistance, boosts efficiency, and prevents chipping for a flawless finish.

Crafted from PCD, the blades undergo precision grinding and specialized heat treatment, ensuring superior wear resistance and hardness. This extends their sharpness, reducing replacement frequency. The cutter body, made of high-strength carbide, is finely machined and dynamically balanced, enabling stable high-speed operation with minimal vibration and extended lifespan.

Our pre-milling cutters work seamlessly with major edge banding machine brands and various panels like MDF, particleboard, and solid wood veneer. With adjustable parameters for different thicknesses and materials, they offer precise pre-milling across furniture and cabinet production, boosting edge banding quality and efficiency.

We have rich experience in providing woodworking Pre-Milling Cutter for furniture factories, precision tool wholesalers/distributors/traders, and woodworking workshops from various countries. If you’re looking for a reliable Pre-Milling Cutter supplier, please feel free to contact us or directly request a quote on this page.

Specification:

Diameter Height Inner diameter Tooth
56 mm 16 mm 14 mm 4 T
56 mm 16 mm 14 mm 6 T
75 mm 20 mm 16 mm 4 T
75 mm 20 mm 16 mm 6 T
69 mm 16 mm 13 mm 4 T
69 mm 16 mm 13 mm 6 T
75 mm 20 mm 16 mm 4 T
75 mm 20 mm 16 mm 6 T

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

For more specs, please contact us for consultation.

The post Pre-Milling Cutter for edgebander appeared first on KoneTool.

]]> Cold Saw Blades For Grooving Aluminum https://www.konetool.com/cold-saw-blades-for-grooving-aluminum/ Sat, 07 May 2022 01:35:20 +0000 https://www.konetool.com/?post_type=product&p=2800 Konetool manufactures and supplies industrial-quality TCT cold saw blades for grooving aluminum for industrial applications like metal fabrication. Tooth Geometry: Square teeth - “FZ” Cutting Material: Aluminum, brass, copper, and other non-ferrous metals Machines: Horizontal panel saws, slotting devices, double milling machines, etc Request a quote for further information (MOQ, price, delivery, etc).

The post Cold Saw Blades For Grooving Aluminum appeared first on KoneTool.

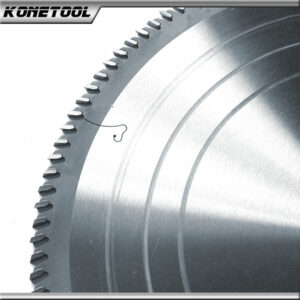

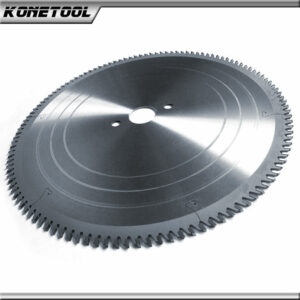

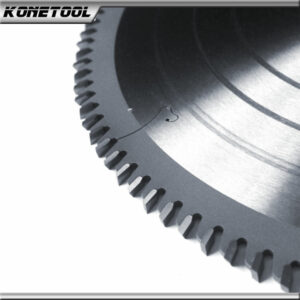

]]> Grooving cold saw blades are used for creating rectangular grooves or slots in aluminum, non-ferrous metals, and plastics. A TCT cold saw blade for grooving consists of a steel body and tungsten carbide tips. The thickness of carbide tips determines the width of the groove and the number of teeth determines what material you can cut. The greater number of teeth are for harder materials.

Konetool has been dedicated to TCT grooving cold saw blade manufacturing for more than 10 years. Our tips are made from sintered tungsten carbide to ensure the hardness and long service life. We use heat-treated steel to manufacture the blade body, guaranteeing blade stability during operation. Our carbide teeth are specially designed to enhance efficiency and result in cleaner cuts. The rake angle is determined by the hardness of the cutting material and the depth of the desired groove. For most grooving saw blades, the rake angle should be larger than 5 degrees.

Customization services are available per your detailed specifications or drawings. Request a quote for further information (MOQ, price, delivery, etc) if you are interested in our cold saw blades for grooving aluminum. Our salespeople and engineers will reach out to you shortly after a quote and provide tailor-made solutions for you.



Specification:

D (mm) d (mm) B (mm) Z TF
200 32 5.0/6.0/6.5 36 FZ
250 32 6.5/8.5/13 40 FZ

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

The post Cold Saw Blades For Grooving Aluminum appeared first on KoneTool.

]]> Cold Saw Blades For Aluminum https://www.konetool.com/cold-saw-blades-for-aluminum/ Sat, 07 May 2022 01:24:15 +0000 https://www.konetool.com/?post_type=product&p=2796 Konetool manufactures and supplies industrial-quality TCT cold saw blades for industrial applications like metal fabrication. Tooth Geometry: Triple chip grind - “TCG” Cutting Material: Aluminum, brass, copper, other non-ferrous metals, plastic Machine: Cold saws, CNC cold saws, double miter saws, and chop/miter saws Request a quote for further information (MOQ, price, delivery, etc).

The post Cold Saw Blades For Aluminum appeared first on KoneTool.

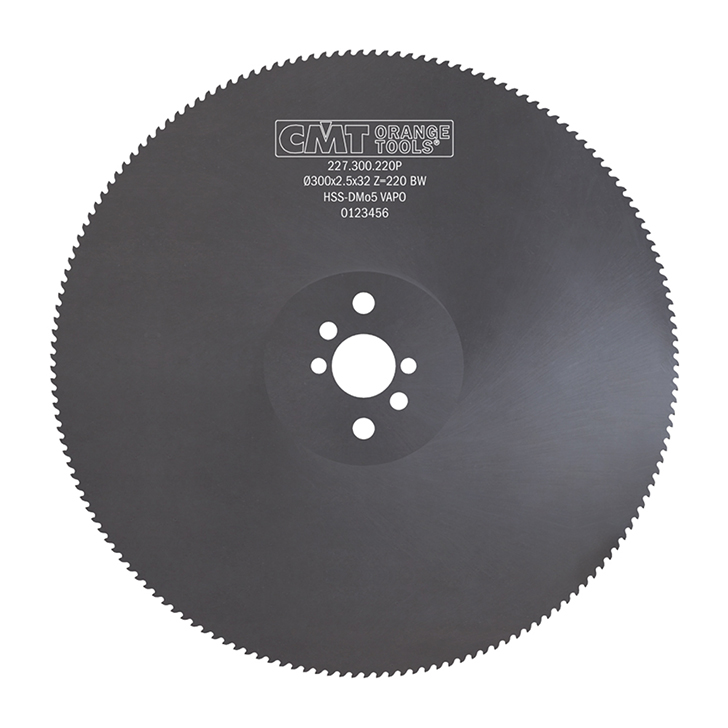

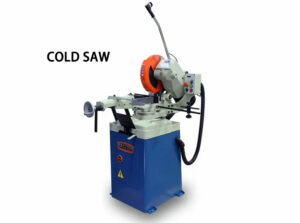

]]> A cold saw, as the name suggests, is a saw machine that can keep the saw blade and cutting material cool during operation, because it transfers the heat and energy to the chip. Cold saws are ideal for processing most ferrous and non-ferrous metals. A flood coolant system and lubricants are needed during the cutting process.

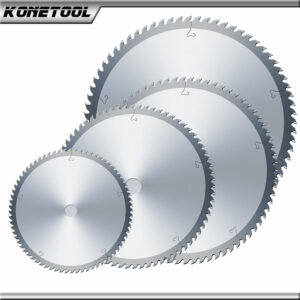

Cold saw blades are circular saw blades for metal cutting, including solid high speed steel (HSS) and tungsten carbide tipped (TCT). TCT blades are used for cutting non-ferrous metal at first but can perform well with cutting ferrous metal as well. TCT cold saw blades consist of a steel blade body with tungsten carbide inserts brazed to the tips. Tungsten carbide tips must be precisely ground to provide perfect cutting and clearance angles. Tungsten carbide is more high-temperature-resistant than HSS, so TCT cold saw blades can run at a higher speed, resulting in high efficiency. Besides, tungsten carbide inserts are extremely wear-resistant, so TCT blades have a longer service life than HSS blades.

Konetool has been dedicated to TCT cold saw blade manufacturing for over 10 years. Our carbide cold saw blades are designed for specialist machines to guarantee enhanced efficiency with requested cutting performance. With our 100% virgin materials, full CNC production lines, and rigorous quality inspections, we have full confidence in our TCT cold saw blades.

KONETOOL TCT Cold Saw Blade Features:

  • Saw blade bodies are manufactured from the highest quality steel to guarantee stable work of the saw machine even in extreme conditions;
  • Saw plates are very flat thanks to well heat treatment;
  • Flattening and surface grinding ensure that the plate is distortion-free and has a uniform thickness;
  • High rigidity ensures straight running during operation;
  • 100% virgin tungsten carbide material;
  • The TCG tooth configuration is durable and has a low chip out when processing brittle materials;
  • Carbide teeth are ground to extremely high precision and can be reground several times;
  • Precise and clear cuts;
  • Advanced brazing technology prevents carbide tips from breaking
  • The coating extends service life and ensures stable performance.



Request a quote for further information (MOQ, price, delivery, etc) if you are interested in our TCT cold saw blades. Our salespeople and engineers are ready to provide the most cost-efficient solutions for you.



Specification:

D (mm) d (mm) B (mm) Z TF
255 25.4/30 2.8 100 TCG
305 25.4/30 3.0 120 TCG
450 30 4.0 120 TCG
500 30 4.4 120 TCG

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

The post Cold Saw Blades For Aluminum appeared first on KoneTool.

]]> Annular Cutter Arbors https://www.konetool.com/annular-cutters-arbors/ Wed, 13 Apr 2022 09:46:01 +0000 https://www.konetool.com/?post_type=product&p=2443 Konetool offers a large range of annular cutter arbors to fit mag drills, drill presses, handheld drills, or milling machines with morse taper or 1/2-20UNF intakes. Our arbor adaptors can be used with mag drill bits with Weldon shanks or Parallel shanks. Request for quotation for more detailed information (MOQ, price, delivery, etc).

The post Annular Cutter Arbors appeared first on KoneTool.

]]> Annular cutters have been proven to be daily use in many applications like engineering, mining, on-site repair, and guard rails. Konetool provides both HSS annular cutters and TCT mag drill bits， which are designed for mag drills. An arbor adaptor can convert a drill press, milling machine, handheld drill, or even CNC machine and lathe to hole makers that accept slugger bits. Konetool supplies a variety of morse taper drill chucks from MT2 to MT6, allowing the use of annular drill bits in any morse taper machines.

KONETOOL Annular Cutter Arbor Features:

  • Available for automatic internal cooling or outer cooling
  • Available for annular bits with Weldon shank, Universal( Nitto) shank, or Parallel shank.
  • Fitting any machines with a morse taper or 1/2-20 UNF fitting.
  • With Allen keys and screws.
  • Competitive price.
  • Customization is available.

Specification:

Morse Taper Clamping Shank Clamping Size D.O.C.(mm) L(mm) L1(mm)
MT2 Weldon Shank& Universal(Nitto) Shank 19.05mm( 3/4″) 50 168 93
MT3 19.05mm( 3/4″) 50 187 93
MT3 19.05mm( 3/4″) 75 203 109
MT3 19.05mm( 3/4″) 100 233 139
MT4 19.05mm( 3/4″) 50 212 95
MT4 19.05mm( 3/4″) 75 214 97
MT4 19.05mm( 3/4″) 100 238 121
MT5 19.05mm( 3/4″) 75 245 96
MT5 19.05mm( 3/4″) 100 250 101
MT6 19.05mm( 3/4″) 100 296 86
MT3 31.75mm( 1-1/4″) 50 202 108
MT3 31.75mm( 1-1/4″) 75 215 121
MT3 31.75mm( 1-1/4″) 100 248 154
MT4 31.75mm( 1-1/4″) 50 225 108
MT4 31.75mm( 1-1/4″) 75 235 118
MT4 31.75mm( 1-1/4″) 100 250 133
MT5 31.75mm( 1-1/4″) 75 264 115
MT5 31.75mm( 1-1/4″) 100 269 120
MT6 31.75mm( 1-1/4″) 100 324 114



Morse Taper Clamping Shank Clamping Size D.O.C.(mm) L(mm) L1(mm)
MT2 Weldon Shank& Universal(Nitto) Shank 19.05mm( 3/4″) 50 162 87
MT3 19.05mm( 3/4″) 50 176 82
MT4 19.05mm( 3/4″) 50 189 72
MT4 19.05mm( 3/4″) 75 210 93
MT5 19.05mm( 3/4″) 50 206 57
MT6 19.05mm( 3/4″) 50 272 62
MT3 31.75mm( 1-1/4″) 50 190 96
MT4 31.75mm( 1-1/4″) 50 204 87
MT5 31.75mm( 1-1/4″) 50 217 68
MT5 31.75mm( 1-1/4″) 75 228 79



Morse Taper Clamping Shank Clamping Size D.O.C.(mm) L(mm) L1(mm)
MT2 Weldon Shank& Universal(Nitto) Shank 19.05mm( 3/4″) 50 168 93
MT3 19.05mm( 3/4″) 50 185 91



Morse Taper Clamping Shank Clamping Size D.O.C.(mm) L(mm)
1/2-20UNF Weldon Shank& Universal(Nitto) Shank 19.05mm( 3/4″) 25 99
1/2-20UNF 19.05mm( 3/4″) 50 135



Morse Taper Clamping Shank Clamping Size D.O.C.(mm) L(mm) L1(mm)
MT3 Parallel Shank 31.75mm( 1-1/4″) 75 245 151
MT4 31.75mm( 1-1/4″) 75 250 133



Morse Taper Clamping Shank Clamping Size D.O.C.(mm) L(mm) L1(mm)
MT3 Weldon Shank& Universal(Nitto) Shank 19.05mm( 3/4″) 50 178 84
MT3 31.75mm( 1-1/4″) 50 190 96

FAQ:

  1. How can I make the payment?
    We accept various payment methods, including T/T (bank transfer), PayPal, Western Union, and L/C (Letter of Credit) for larger orders. Payment terms are typically 30% deposit in advance and 70% balance before shipment.
  2. What are the shipping options and delivery times?
    We support FOB, CIF, and DDP shipping terms depending on your preference. we usually ship via express courier like DHL, FedEx, or UPS. Lead time for bulk orders is generally 15–35 days, depending on quantity and customization requirements.
  3. How do you ensure product quality?
    We have a strict quality control system in place. All products are inspected at every stage of production, We have own quality inspection team and laboratory, along with advanced equipment to ensure the qualification rate of our products up to 99%.and can provide test reports or certificates upon request.
  4. Can I customize the product or packaging?
    Yes, we offer OEM and ODM services. You can customize the product design, . Just let us know your requirements,CAD,Step Drawings，or send sample Our team will assist you throughout the process.
  5. What is your after-sales service policy?
    If you encounter any quality issues, please contact us with photos or videos. We will evaluate the situation and provide replacements, spare parts, or refunds as appropriate.

Konetool has been developing our products and service for more than 20 years, offering annular cutter industrial arbors for every application of our customers. Request for quotation for more detailed information (MOQ, price, delivery, etc).

The post Annular Cutter Arbors appeared first on KoneTool.

]]>
