Konetool manufactures top-quality Bahco and Linbide carbide scraper blades with micro-grain tungsten carbide.
Material: Tungsten Carbide
Grade: GF21, TF21, GM23H, GM24H

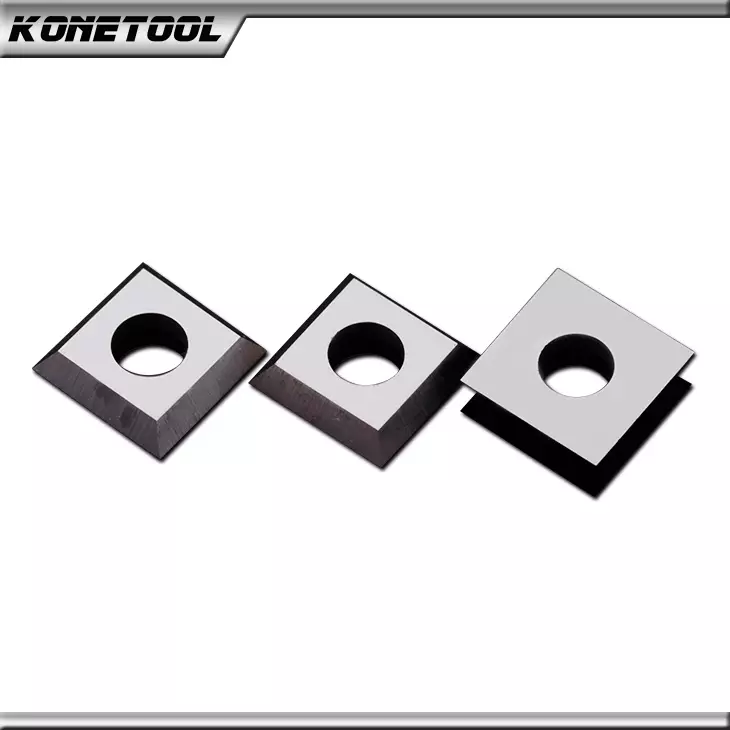

Shape: Triangle, rectangle, square, round, teardrop, and pear
Cutting Material: boat hulls, windows, doors, wooden trim, rusty metal, stonework, and concrete
Request a quote for further information (MOQ, price, delivery, etc).
Konetool carbide scraper blade is ideal for precision work such as stripping boat hulls, windows, doors, wooden trim, rusty metal, stonework, and concrete.
Made from high-grade tungsten carbide, Konetool carbide scraper replacement blades feature superior sharpness and 10 times longer service life than conventional steel blades. The blades are ground precisely to a slightly convex shape, preventing the blade corners from scratching the workpiece surface.
We provide different shapes of carbide scraper blades, including triangle, rectangle, square, round, teardrop, and pear. Konetool carbide scraper blades fit for LINBIDE and BAHCO scrapers.
Apart from standard blades, we also offer a customization service.
If you are interested in our tungsten carbide scraper blades, feel free to request a quote for further information (MOQ, price, delivery, etc). Our salespeople and engineers will reach out to you shortly after a quote and provide tailor-made solutions for you.
Grade:
| Konetool Grade | Grain Size | Density (g/cm³) | Hardness (HRa) | T.R.S (N/m㎡) | Application |
| GF21 | Fine | 14.85-15.05 | 91 | 2000 | Best for removing metal |
| TF21 | Sub-Micron | 14.96 | 92.8 | 2250 | Best for removing metal |
| GM23H | Medium | 14.2-14.5 | 89-91.5 | / | Best for removing paint |
| GM24H | Medium | 10.65-11.05 | 91-92.6 | / | Best for removing paint |

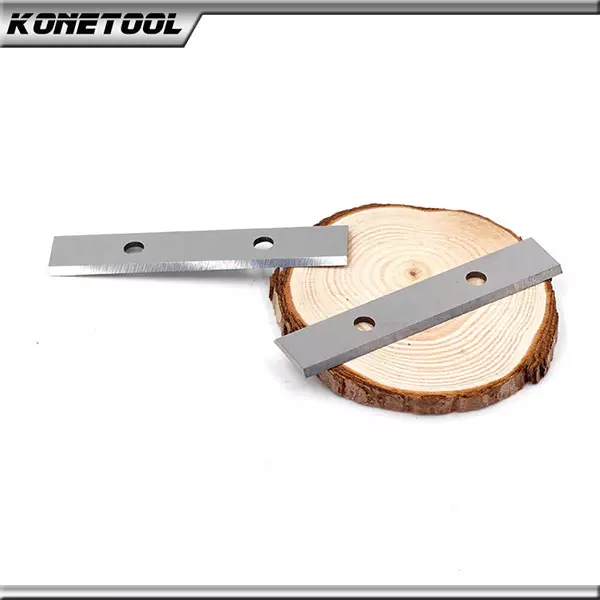

Specification: Rectangle-shaped carbide scraper blades
| L (mm) | W (mm) | T (mm) | Shape |
| 50 | 12 | 1.5 | Rectangle |
| 50 | 12 | 1.7 | Rectangle |
| 60 | 12 | 1.5 | Rectangle |
Specification: Other shapes
| OD（mm) | ID(mm) | T(mm) | Shape |

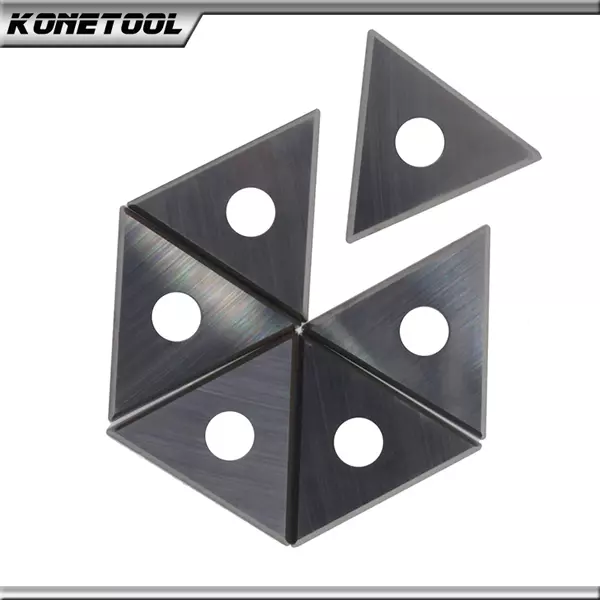

| 14.5 | 5.5 | 1.5 | Triangle |

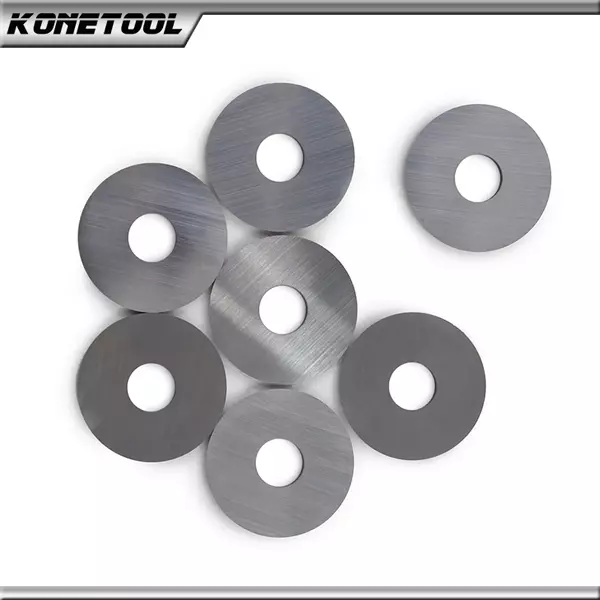

| 17 | 5.5 | 1.5 | Round |
| 20 | 16.31 | 1.5 | Pear |

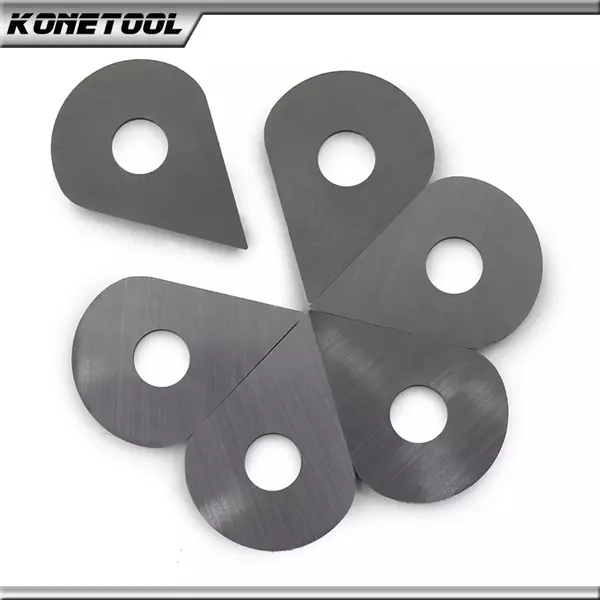

| 22 | 16.31 | 1.5 | Teardrop |
Application:
Painting industry Shipbuilding industry
