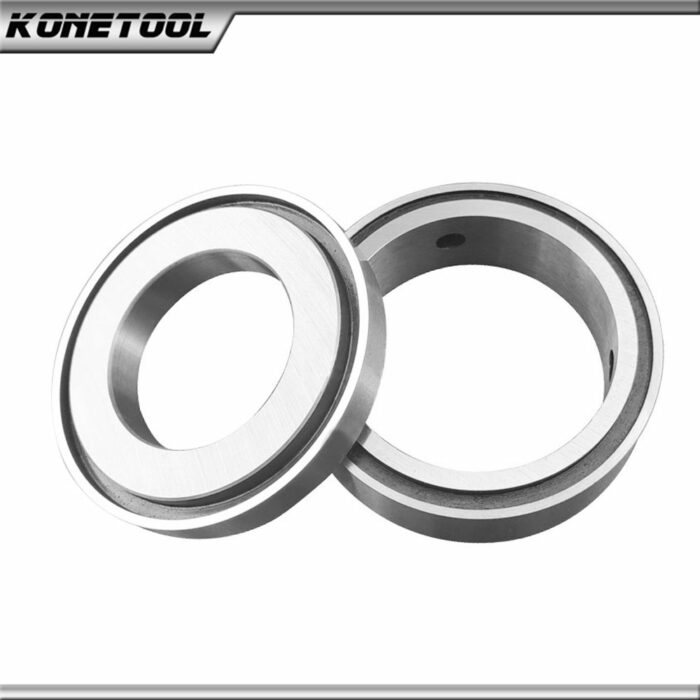

Dished Knives For Slitter Rewinders

Konetool offers top-quality dished top knives and bottom knives used with slitter rewinders in the converting industry.

Material: Tungsten carbide

Grade: KS27 for dished top knives, and GF30/GM30/GM23 for bottom knives

Application: Slitting flexible packaging materials

Request a quote for further information (MOQ, price, delivery, etc).

Request A Quote

Description

A slitter rewinder is an indispensable part of the packaging converting industry. It converts large rolls of materials into narrower rolls with different slit widths. A slitter rewinder machine can not only slit but also rewind the materials for further processing steps. Slitter rewinders have a wide range of applications, including paper, film, foil, plastic, and other flexible packaging materials in the converting industry.

There are three slitting methods: shear slitting, score/crush slitting, and razor slitting. These slitting methods are determined by several factors such as material types. As for shear slitting, two rotary knives (a dished top knife and a bottom knife) work like scissors that are ideal for slitting paper, film, foil, etc.

Dished knives and bottom knives play a vital role in the slitting process. With outperformed slitting knives, the efficiency and product quality can be greatly improved.

Konetool manufactures high-precision carbide dished knives and bottom knives, featuring a clean-cut finish, excellent wear resistance, and extended service life, resulting in less downtime. As an ISO-certified company, Konetool has complete CNC production lines, a mature supply chain, and rich global trade experience.

Grade:

Konetool GradeGrain SizeDensity (g/cm³)Hardness (HRa)T.R.S (N/m㎡)
GF30Fine14.188.93200
GM30Medium1487.52650
GM23Medium14.789.52520



Customization service:

Apart from the standard specifications and grades, we can also provide customization services according to drawings, samples, applications, or required specifications.

Request a quote for further information (MOQ, price, delivery, etc) if you are looking for quality dished knives. We will reach out to you shortly after a quote, and our salespeople and engineers are ready to provide tailor-made solutions for you.



Specification:

Size (mm)Knife TypeGrade
Ø130×Ø100×48BottomGF30/GM30/GM23
Ø73×Ø35×18BottomGF30/GM30/GM23
Ø75xØ30×17.5BottomGF30/GM30/GM23
Ø105xØ90×10BottomGF30/GM30/GM23
Ø60xØ30×10BottomGF30/GM30/GM23
Ø180xØ150×50BottomGF30/GM30/GM23
Ø170.5xØ135×12.5BottomGF30/GM30/GM23
Ø280xØ240×70BottomGF30/GM30/GM23
Ø250×Ø188×15BottomGF30/GM30/GM23
Ø190×Ø138×15BottomGF30/GM30/GM23
Ø120xØ65×1.2-30°TopKS27
Ø100xØ20×1.8-14°TopKS27
Ø100xØ20×1.5TopKS27
Ø120×Ø60×1.5TopKS27
Ø120×Ø55×1-32°TopKS27
Ø102×Ø22×0.5-6°TopKS27
Ø80×Ø20×1.8TopKS27
Ø120×Ø20×1.8TopKS27
Ø150×Ø20×1.8TopKS27
Ø100xØ25.4×1.3TopKS27
